AWI-I
 by HMC Int'l. Div., Inc.
Industrial Wide Belt Tension Tester
These testers are intended for INDUSTRIAL situations where:
- Belt tensions reach 6000 pounds...
- Belt widths reach 12 inches...

Need to measure tension in that big belt?
- It's EASY! -
The AWI and WB-170 product lines have you covered!

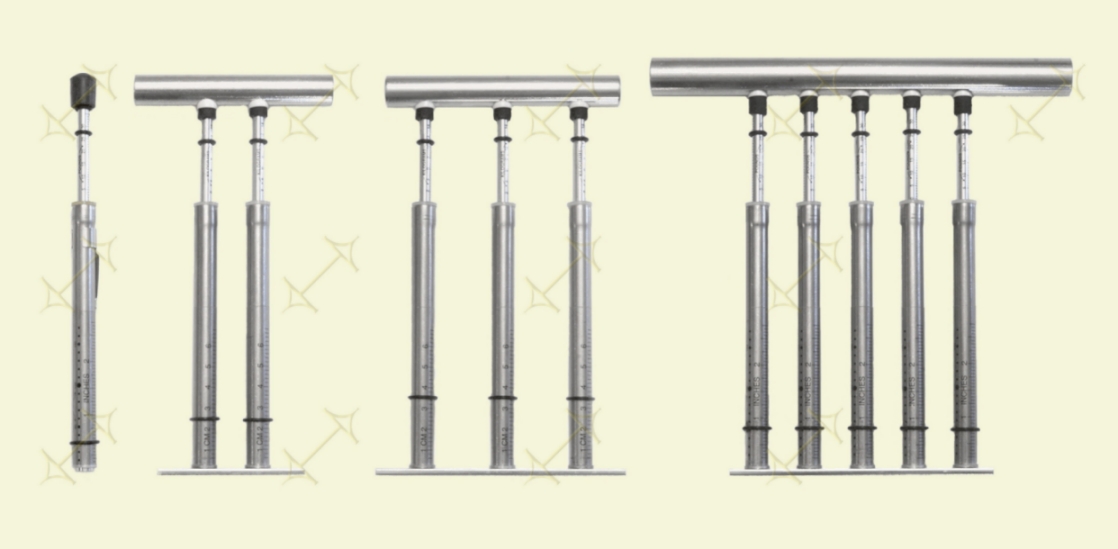

Full line of AWI Wide Belt Tension Testers
Guaranteed accurate readings.

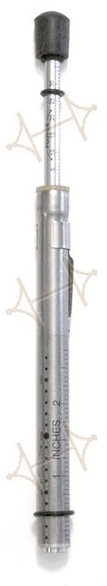

AWI-I, 0-35 lbs (0-15.9 Kg.)
An industrial belt tension tester capable of measuring force from 0-35 lbs (0-15.9 Kg.), and belt tension from 0-560 lbs (0-255 .), on belts to 1" in width.

Recommended for use on 3V-3VX, 5V-5VX and those 8V belts which have force ranges below 35 lbs. Additionally, the instrument can handle A, B, C, and all other single strand belts within the preceding force ranges.

Typical Belt-and-Sheave Application Operation:

Uses the universally accepted method of determining belt tension by depressing the belt 1/64 of an inch per inch of span. This results in an "F" over "T" ratio of 1 to 16. The maximum tension capability of this instrument, therefore, is 16 times 35, or 560 lbs.

  1. Measure the length of span between sheave tangent points.
  2. Set the bottom of the large o-ring at the correct point (on "50" if it is a 50 inch span) and set the top (small o-ring) down against the instrument's flange.
  3. Depress the instrument downward at the center of the span until the large o-ring at the base of the instrument is in line with the tangent point of the drive. (This may be accomplished with a straight-edge, or a neighboring belt in a multiple belt drive.)
  4. Read the number of pounds of force indicated by the small o-ring on the plunger rod, then multiply by 16 to determine belt tension.

NOTE: Many belt manufacturers will specify the recommended plunger reading (in lbs. or kg.) for a specific application. In such cases, always follow the belt manufacturer's recommendation.

WIDE BELT TENSION TESTERS
Tester Model Number Maximum Belt Width Maximum Force (lbs.) Belt Tension (lbs.)
AWI-I 1" 35 ±560
AWI-II 3" 66 ±1050
AWI-III 5" 99 ±1580
AWI-V 5" 165 ±2640



Manufactured and protected under the following United States Patent and Trademark Office patent numbers: 3171278, 3352153, 3391574, 3482442, and 3596508.

Made in the USA.
